What does the optimal beam deflection mean in connection with cleaning nozzles?

Image:

Beam deflection [FI-KEG]

FI-KEG

Company information KEG mbH, Burgstädt/Herrenhaide, Germany.

/ 109

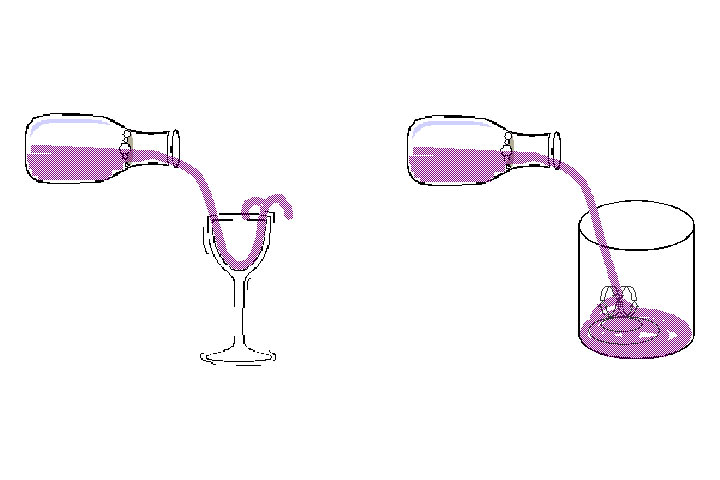

When a liquid is poured into a chalice shaped glass, the liquid is deflected over the rounded bottom and out of the glass with a low energy loss.

If, however the liquid is poured vertically into a cup with a flat bottom, the liquid is deflected symmetrically towards the cup sides. This produces intense mixing and a strong reduction of kinetic energy.

Liquid jets, including the pressure water jets, are by definition free jets [Kraat1989] [Rinal2003] [Freim1998].

Kraat1989

Kraatz, W.: Flüssigkeitsstrahlen, In: Bollrich, G. (Hrsg): Technische Hydromechanik, Band 2, VEB Verlag für Bauwesen, Berlin (1989).

Rinal2003

Rinaldi, P.: Über das Verhalten turbulenter Freistrahlen in begrenzten Räumen, Dissertation, TU München, Lehrstuhl für Hydraulik und Gewässerkunde (2003).

Freim1998

Freimann, R.: Flüssigkeitsstrahlen: Strömungsmechanische Kenngrößen praxisrelevanter Strahlformen, In: Wasser / Abwasser, Das Gas- und Wasserfach (Hrsg.), (140) Jahrgang, H. 6, Oldenbourg Industrieverlag GmbH, München (1998).
