Pressure loss in the cleaning nozzle (2)
In the cleaning nozzle, the water flow is deflected and distributed over the individual nozzle apertures and inserts.
Table:
Different water jet deflections and their effect on the efficiency of the radial nozzle [FI-KEG]
|
|
|
|
|

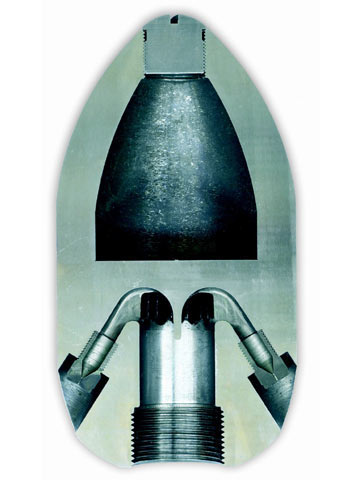

Poor water jet deflection with an efficiency of up to 65%
[Source: STEIN Ingenieure GmbH] |

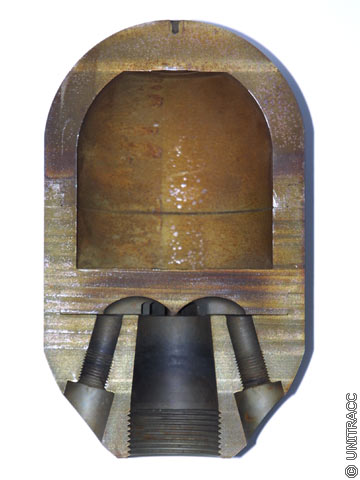

Average water jet deflection with an efficiency of up to 90%
|

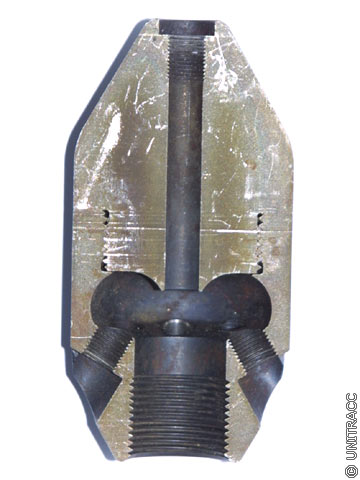

Good water jet deflection with an efficiency of up to 97% [FI-KEG]
|
