Constructive design measures for the reduction of ...
NA-06 - Cleaning: Design Measures to Avoid Deposits
Catch basin
Catch basins with no sump and a direct invert discharge into the sewer line should use a perforated waste bucket as a sieve for retaining coarse debris and floatables, before they enter the sewer system. Any particles that are able to pass through the waste bucket openings are able to reach the main sewer line via the lateral catch basin line.
Image:

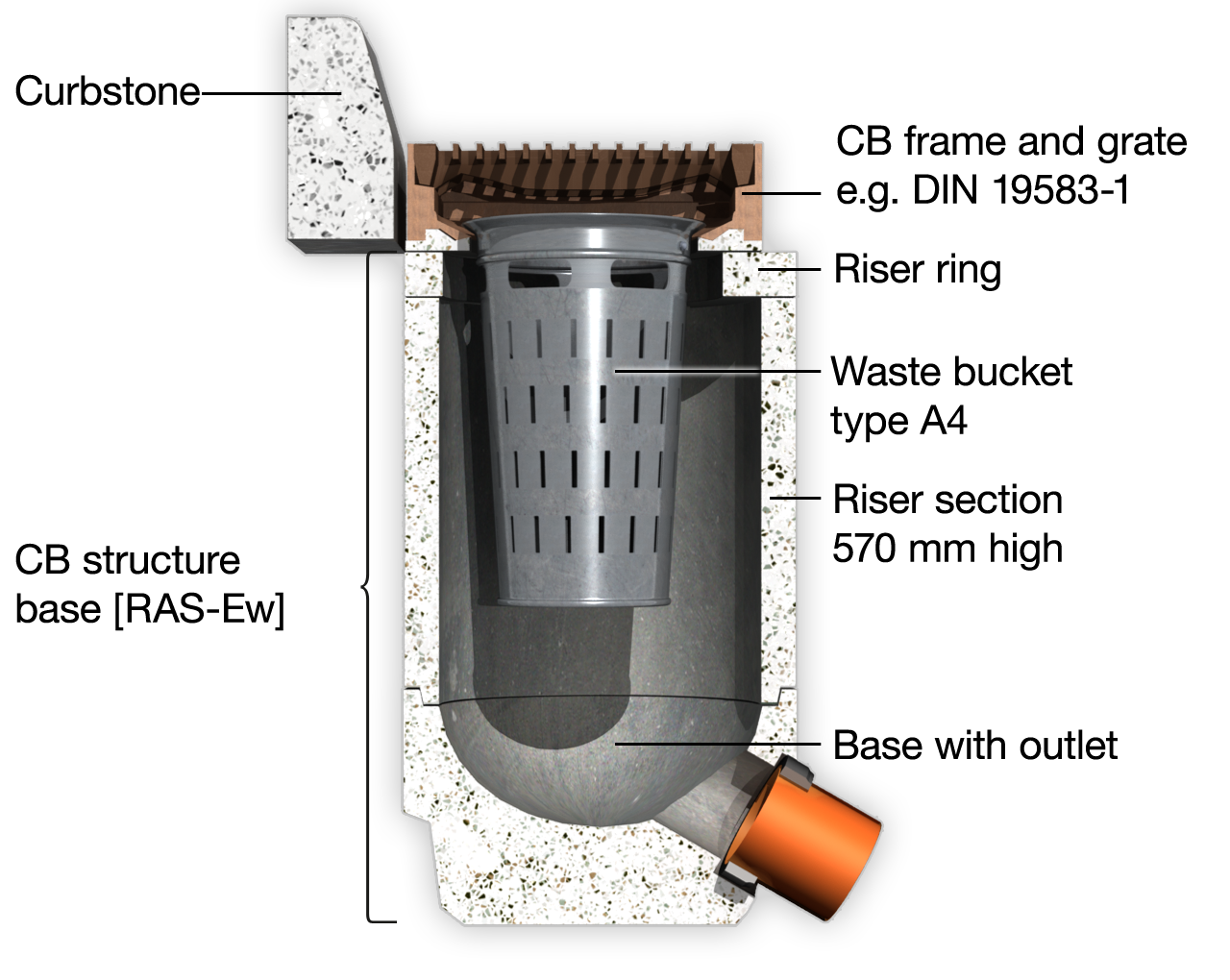

Catch basin detail - direct discharge [Source: visaplan GmbH]
Image:

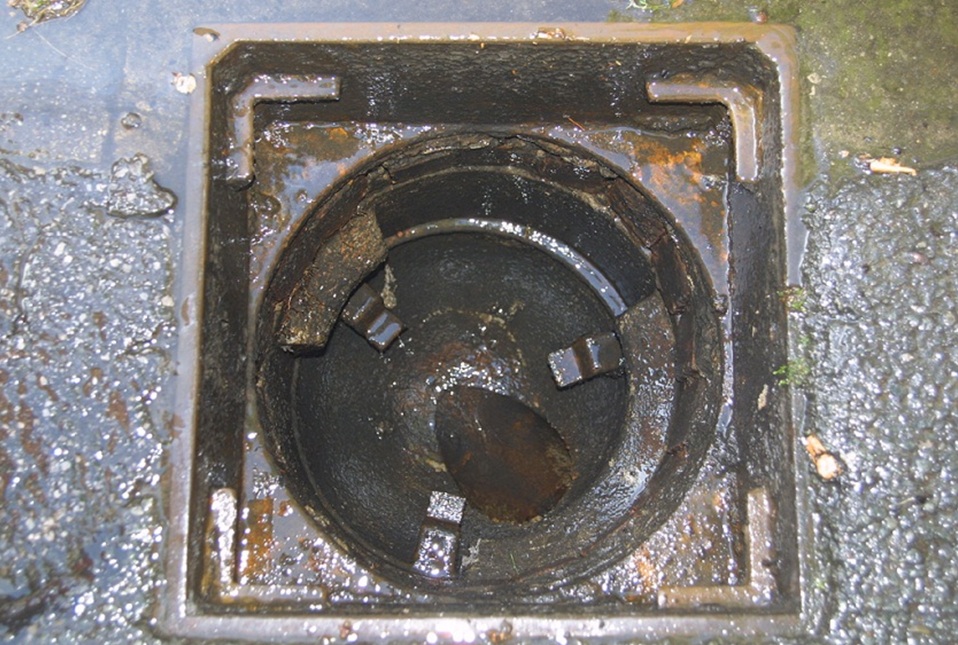

Catch basin - direct discharge [Source: STEIN Ingenieure GmbH]
