Fundamentals
Origin of solids
Transport behaviour of solids
Consequences of solids entry

Origin of solids

Origin of solids - Wastewater

Domestic wastewater originates from private households and similar facilities. These solids consist of 80-90% organic matter, such as food particles, grease, feces, hair, paper, etc. [Godeh2002] [ATV96:2007] [ATVDVWKM 369:2003].

The remaining portion consists of mineral solids that result from the incorrect disposal of household waste such as cat litter.

Image:

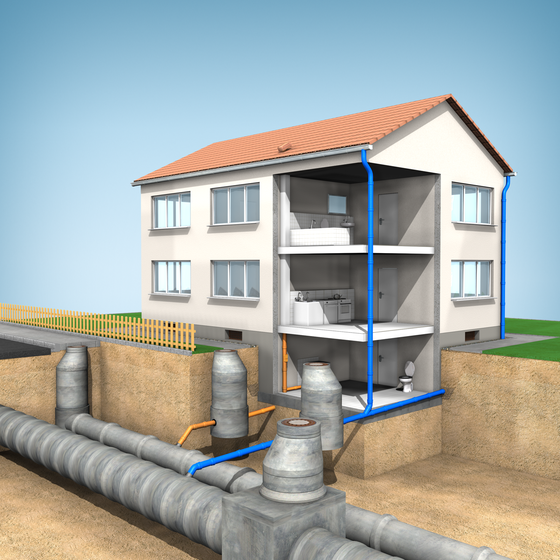

Private household drainage system [Source: visaplan GmbH]

Source: visaplan GmbH

Graphical material and visualisations visaplan GmbH, Bochum, Germany (www.visaplan.com).

Godeh2002

Godehardt, M. (2002): Feststoffe aus der Reinigung der Abwasserkanäle, Sinkkästen und Regenbecken, KA-Korrespondenz Abwasser (49), S. 180-185

ATV96:2007

1. Arbeitsbericht der ATV/VKS-Arbeitsgruppe 3.11.1 im ATV/VKS-Fachausschuß 3.11 "Infrastrukturabfälle aus Abwaasseranlagen und Straßenunterhaltung". Feste Stoffe aus dem Kanalnetz und Sinkkästen. Korrespondenz Abwasser 43 (1996), H. 11, S. 2003-2007.

[1^st work report of the working group regarding waste from the infrastructure of drains and sewers - solids]

ATVDVWKM 369:2003

ATV-DVWK-M 369 (2003): Infrastrukturabfälle: Abfälle aus der Reinigung von Kanälen, Sinkkästen und Regenbecken-Abfälle aus Abwasserbehandlungsanlagen (Rechen- und Sandfanggut), GFA Verlag, Hennef

[Waste of infrastructure: Waste from the cleaning of sewers, gullies and rainwater reservoirs - Waste from sewage treatment plants]

/ 53

Industrial sewage comes "in whole or in part from an industrial or commercial enterprise". Since the composition of this waste water is dependent on the nature of the individual operation, it is not possible to generalize the type and amount of solids contained therein.

High concentrations of organics are mainly found in the wastewater from the following industrial sectors: food industry, beverage industry, factory farming, establishments processing animal waste, paper and pulp industry, chemical industry, including pharmaceutical and petrochemical industries [SteinD1987].

The distribution of the waste water can take place through a combined system in conjunction with stormwater, or in a separate waste water system. In the latter application, the waste water is delivered directly to the treatment plant through a closed piping system. The solids within these systems tend not to form any deposits as the channels are operated with a high filling volume and adequate velocity.

SteinD1987

Stein, D., Lühr, P., Niederehe, W., Willert, R., Petrich, W. (1987): Undichte Kanäle als Ursache von Grundwasserverunreinigungen. Studie über die Erfassung des Istzustandes unter besonderer Berücksichtigung des Betriebes und der Instandhaltung von Kanalisationen, Umweltforschungsplan des Bundesministers für Umwelt, Naturschutz und Reaktorsicherheit, Forschungsbericht 10202609
