Invert nozzles - Flat nozzles
Invert nozzles - Flat nozzles (2)
Image:
Invert nozzle detail [Source: STEIN Ingenieure GmbH]
Image:

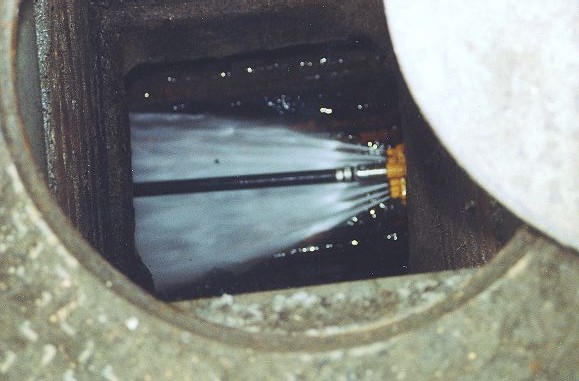

Invert nozzle in operation [Source: STEIN Ingenieure GmbH]
Flat nozzles are equipped with interchangeable jet inserts. The nozzles are designed for high flow rates, which in conjunction with a low jet angle produces a very high discharge force.
A rotary joint is used between the nozzle and the high-pressure hose in order to prevent the occasional rotation of the hose from affecting the nozzles optimal position in the pipe invert.
