NA-05 - Cleaning: Cleaning Nozzles

Nozzle types

Nozzle types (2)

Image:

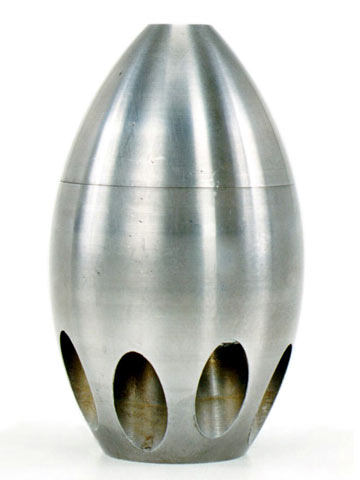

Radial nozzle [FI-KEG]

Image:
Radial nozzle - Removal of loose deposits [Source: visaplan GmbH]

Radial nozzle:
Removal of loose deposits (sand, gravel, sludge depositions) in nominal sizes of DN 50 (2'') to DN 1,200 (48'')

Image:

Rotary nozzle - semi radial - forward jetting [FI-KEG]



Image:

Rotary nozzle - Rear and side jetting [Source: visaplan GmbH]



Rotary nozzle:
Removal of agglomerations (biofilm, fats, incrustations), thin roots, loose and solidified deposits; applicable up to ca. DN 1,000 (40'') [Geib2002]

Image:

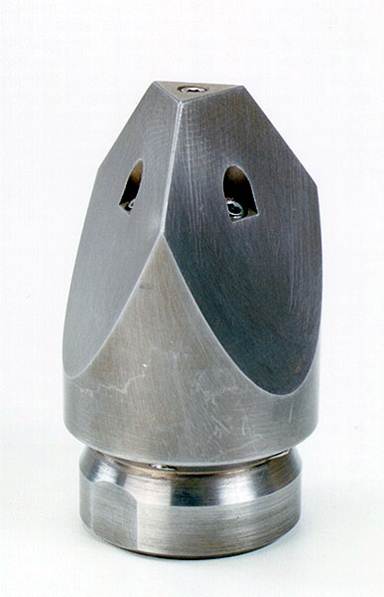

Penetrator nozzle - forward jetting [FI-KEG]




Image:
Penetrator nozzle [Source: visaplan GmbH]


Penetrator nozzle:
Removal of congestions, roots and persistent deposits, applicable up to ca. DN 2,000 (80'')(milling effect due to sharp edges) [Geib2002]

Image:

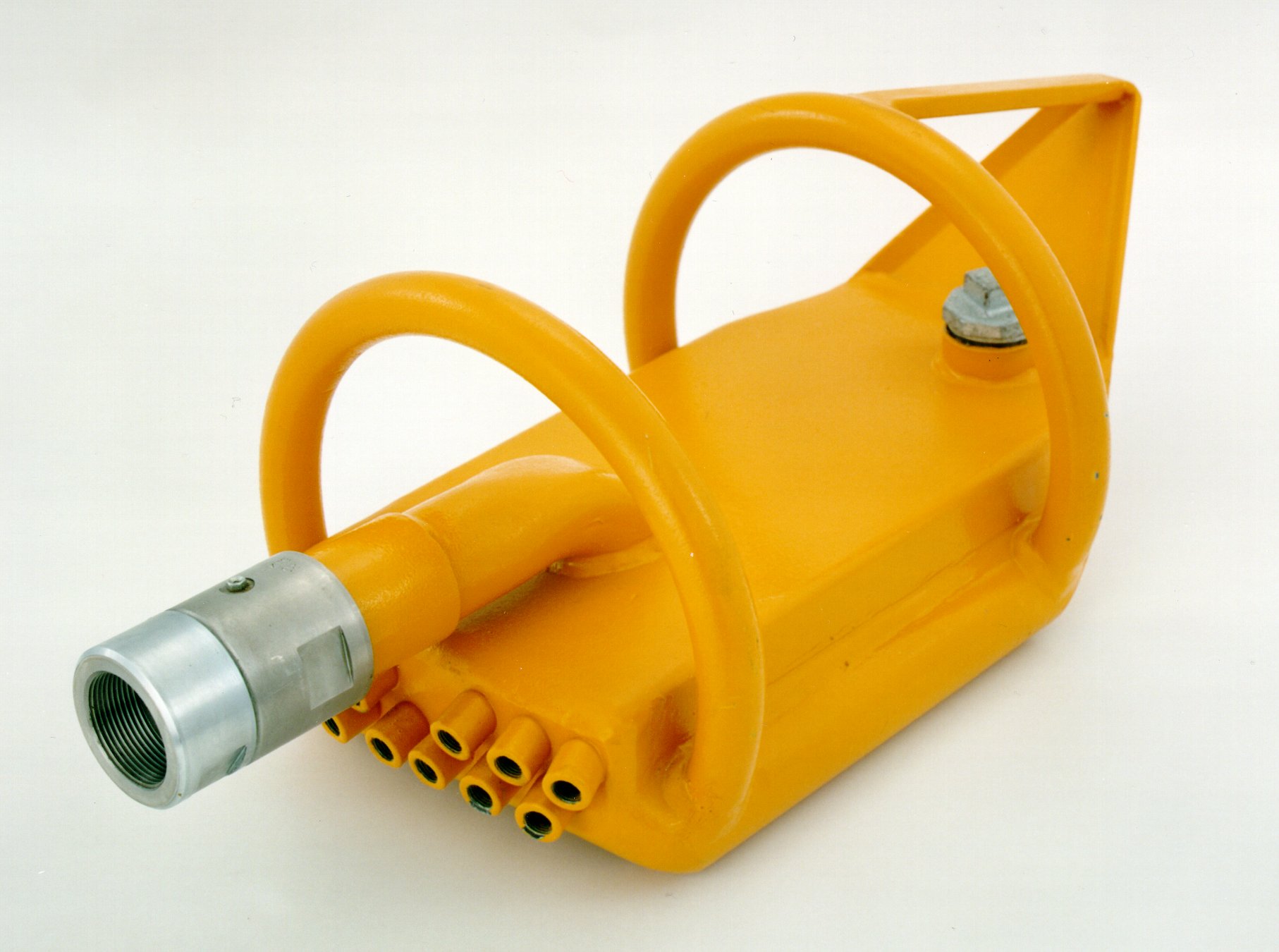

Invert nozzle [Source: STEIN Ingenieure GmbH]

Image:

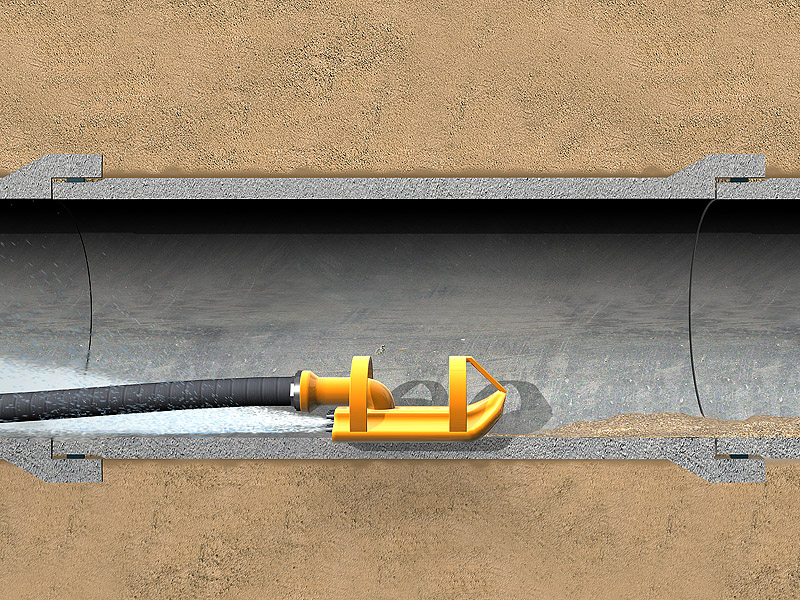

Invert nozzle  [Source: visaplan GmbH]





Invert nozzle:
Removal of loose deposits for cleaning procedures in the invert area; applicable from DN 250 (10'') to DN 1,800 (72'') [Bosse2004]
