Overview of the cleaning methods
Surge flushing
Wastewater volume activated flushing system
Flushing methods with reservoir -Tipping bucket
Tipping bucket
Flushing systems with a tipping bucket are used for the automatic cleaning of stormwater storage basins (e.g. stormwater sewer, stormwater overflow basin etc.). The flushing water is stored in a relatively small reservoir in the form of a tipping bucket or pivoting drum, from where it is released abruptly in order to form the surge wave.
Image:

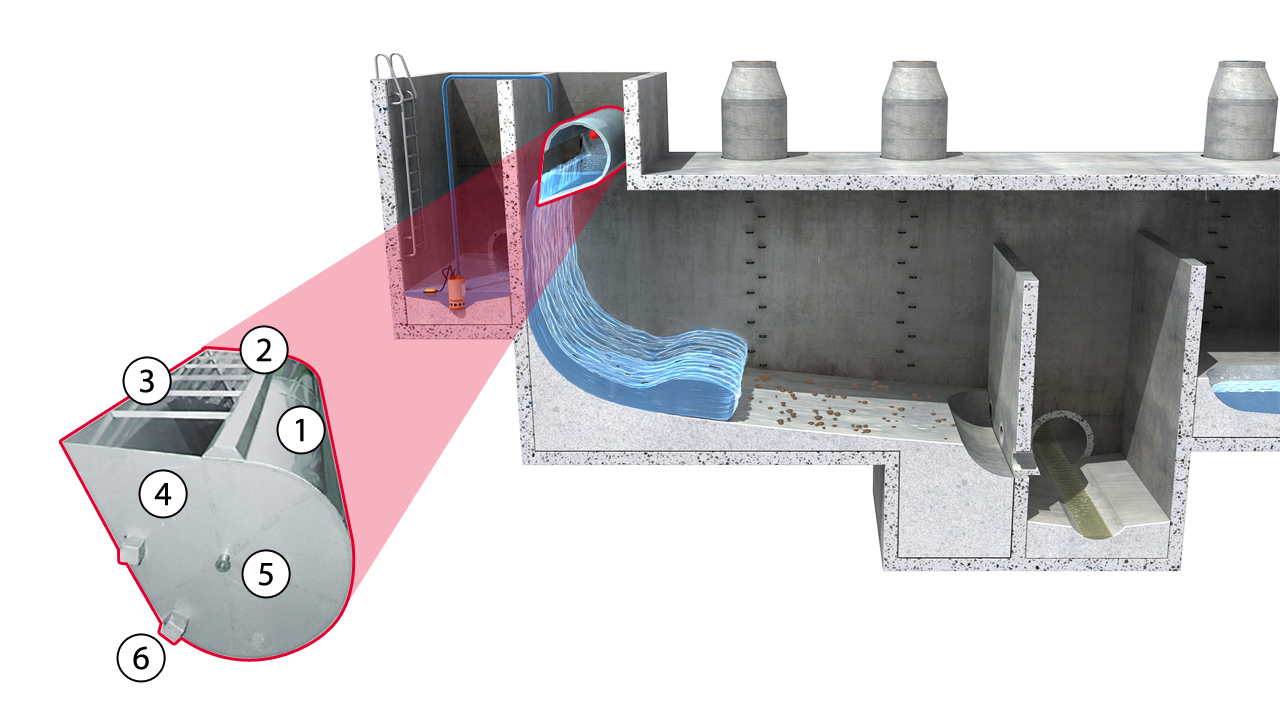

Tipping bucket detail [Image: visaplan GmbH]
Legend:
1. Tipping trough
2. Load carrier
3. Drum reinforcement
4. Drum side plate
5. Mounting pins
6. Stopper
3. Drum reinforcement
4. Drum side plate
5. Mounting pins
6. Stopper
