Sielwolf
Sielwolf

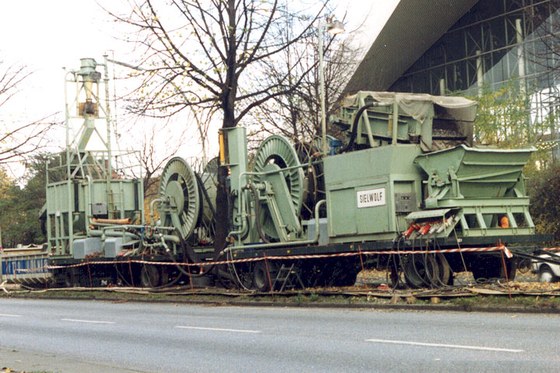

Sielwolf system [Kupcz1987]
Video:
Depiction of the principle of the "Sielwolf" with reference to [[Kupcz1987]] [Source: STEIN Ingenieure GmbH]
Sielwolf system [Kupcz1987]
Kupczik, G.: Sielwolf-Verfahren zur Reinigung großvolumiger Abwasserkanäle. Dokumentation 1. Internationaler Kongress Leitungsbau 1987 Hamburg, Teil I, S. I/861 - I/866 (1987).
Kupczik, G.: Sielwolf-Verfahren zur Reinigung großvolumiger Abwasserkanäle. Dokumentation 1. Internationaler Kongress Leitungsbau 1987 Hamburg, Teil I, S. I/861 - I/866 (1987).
Video:
Depiction of the principle of the "Sielwolf" with reference to [[Kupcz1987]] [Source: STEIN Ingenieure GmbH]
Kupczik, G.: Sielwolf-Verfahren zur Reinigung großvolumiger Abwasserkanäle. Dokumentation 1. Internationaler Kongress Leitungsbau 1987 Hamburg, Teil I, S. I/861 - I/866 (1987).
The Sielwolf is pulled through the section to be cleaned using a winch. The deposits are removed using high pressure water blasting. This process results in a water-debris mix, or slurry, that is transported via a pump into skip containers which are set up above ground. Preceding the pump is a portable sieve which is used to protect the system by removing particles greater than 50mm and shredding materials, such as textiles, to small pieces.
