BE-15 Pipes and Materials: Welding of Plastic Pipes

Heating element butt welding

Alignment process

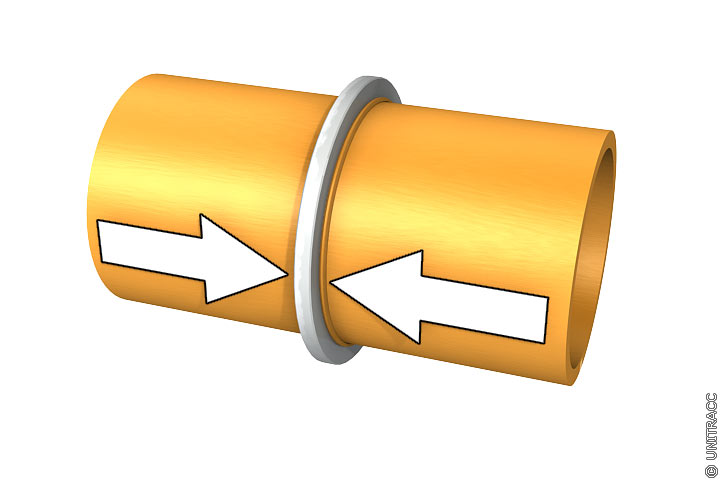

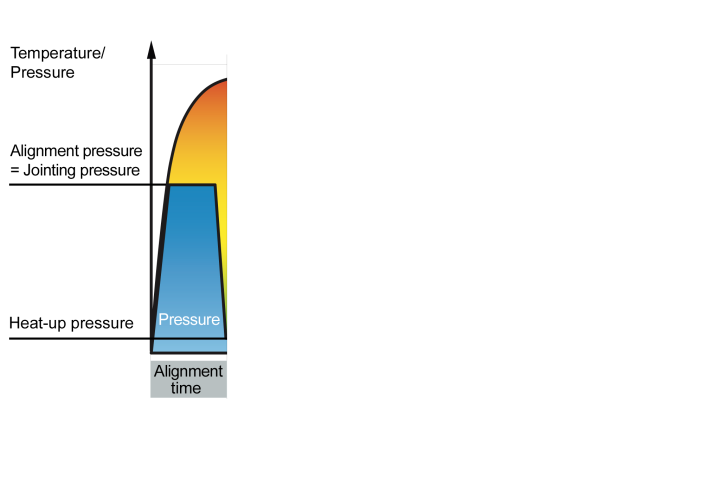

The joining areas are pressed against the heating element as long as the complete areas lie coplanar against the heating element. The alignment process is finished when the heights of beads have reached stipulated values along the whole perimeter or the whole top of the panel, respectively. The bead heights are indications that the joining areas lie plane against the heating element. The adjusting pressure is maintained during the whole procedure.

Table:
Alignment and jointing pressure in heating element butt welding depending on the material

  PE PP PVDF ECTFE
Adjusting and jointing pressure [N/mm2] 0.15 0.10 0.10 0.08 to 0.09





/ 87
