NordiTube presents new independent long-distance pressure liner system
Dec 02, 2022
NordiTube technologies has established a global position as a technology provider for trenchless pipe rehabilitation
NordiTube is providing rehabilitation products for pressure pipe applications like portable water and gas for more than 35 years.
A rehbailitation solution for all kinds of pipes
In the 1980s, the first pressure pipe rehabilitation technology, the Phoenix System, was developed in Japan. The system had been designed to reduce the damages to pipes during earthquakes. Shortly after, Norditube developed the Phoenix system further to match with TUBETEX liner European water and gas pipe network´s standards. New products followed, like the fully structural NORDIFLOW pressure system, the NORDIWALL gravity system, the r-tec CloseFit PE Pipe system and recently the NORDITUBE IH-LINER, a long-distance, resin free liner system from DN 50 up to DN 1200.
NORDITUBE IH-LINER system

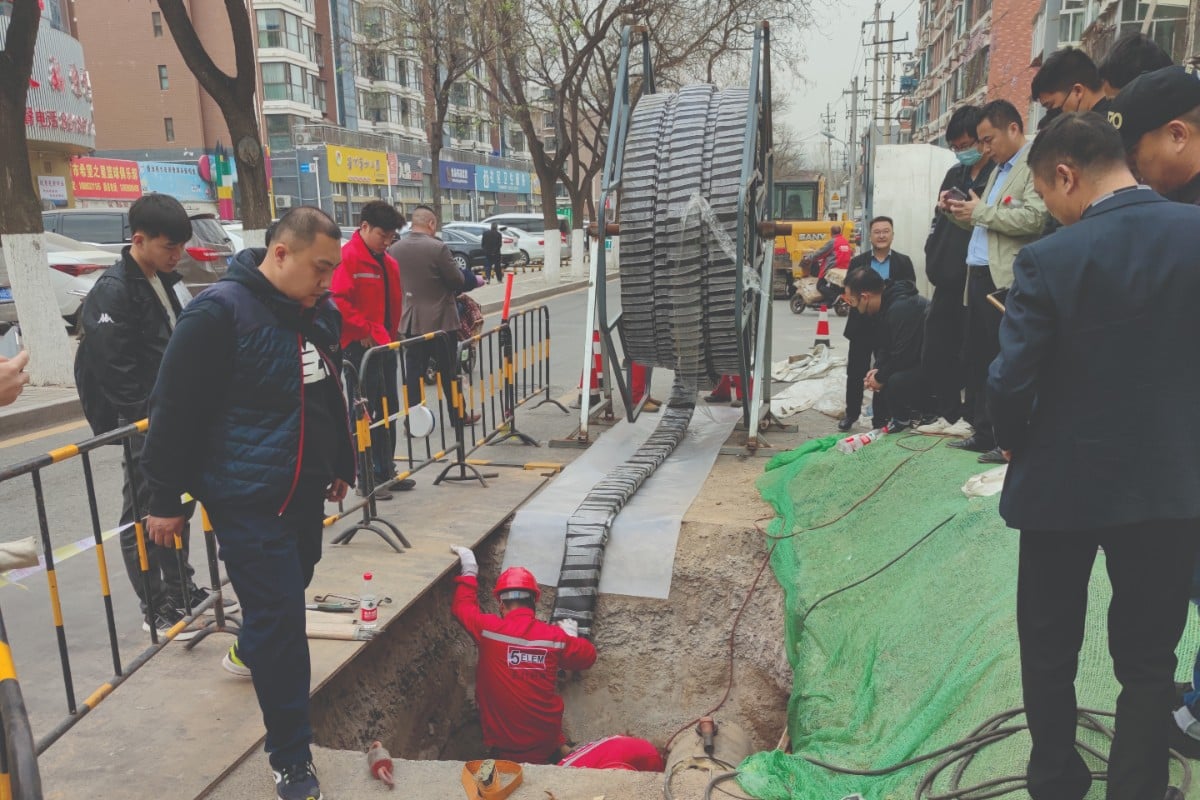

The NORDITUBE IH-LINER liner is an inserted-hose according to ISO 11295 and is rated as an independent pressure liner. The inner layer of the liner is selected depending on the transported medium, gas, oil, steam or water. The liner has the US NSF drinking water certificate. The middle layer is designed to provide high flexibility and high-pressure resistance. The outer cover protects the fiber reinforced middle layer and prevents the liner from elongation or shrinking. The diameter ranges from DN 50 up to DN 1200, and the long potential insertion length of up to 3 km in 1 pull, in combination with special Liner- Connectors provide economical rehabilitation solutions for most of the existing transmission pipelines.
World Record Project
In 2019 the Tangshan Portable Water Pipeline company did have to repair a DN 800 steel water pipe. The pipe was leaking and after a major burst it had been decided to upgrade the line. During the design process it appeared, that 1200m of the pipe crossed a sensitive agriculture area. A replacement of the pipe at the same route was not possible and a relocation of the pipe was too costly. A further challenge was the available construction time window. The 1200m had to be renovated in less than two weeks. In addition, Tangshan Water requested to keep the flow capacity of the original DN 800 pipe and an operational pressure of 1.0 Mpa.
The only technology available to meet all the criteria was the NORDITUBE IH-LINER IH Liner system. The inserted Liner can be produced in long length and in diameter up to 1200mm. The end-connector system covers the range from DN 50 to DN 1200. The PE coating does provide excellent Hydraulic Characteristics.

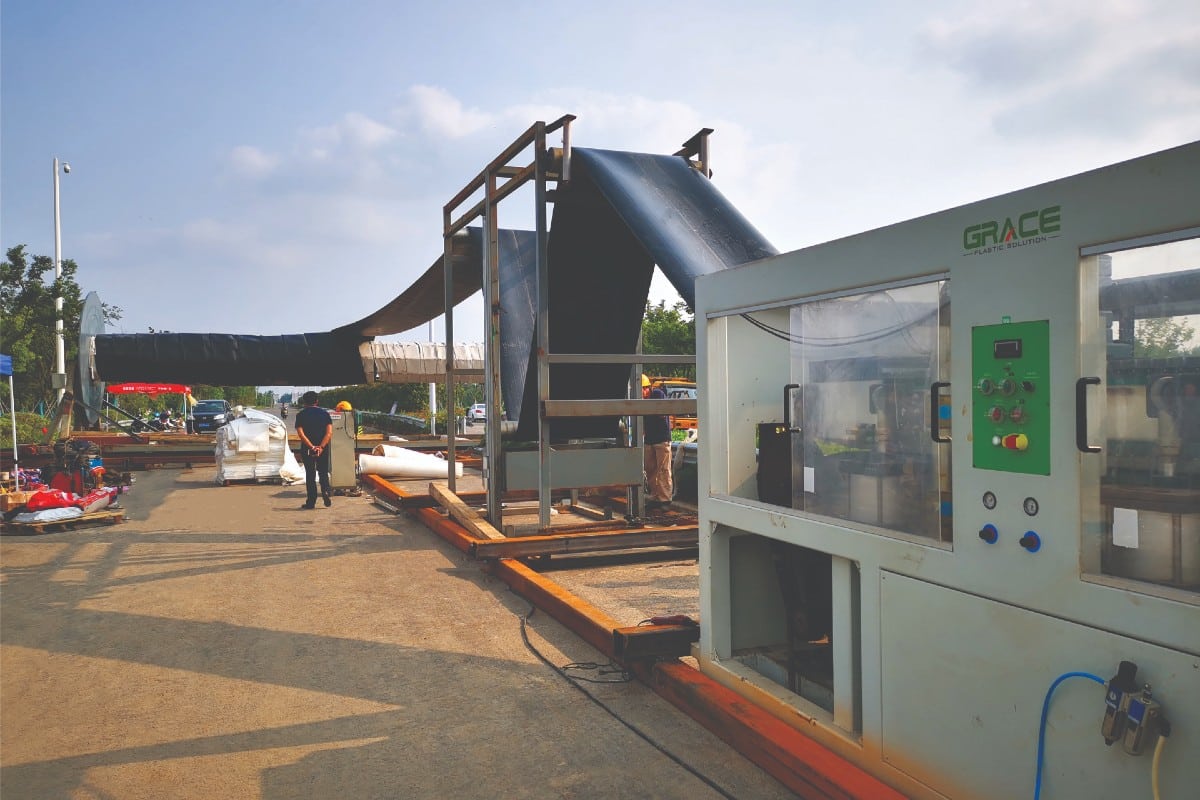

The installation of a DN 800 3-layer inserted liner over the length of 1.2 km was a world record. The construction team completed the pipeline repair project of the total length of 1.2 km in only five days. After the completion of the project, the safety and stability of the pipeline water supply were greatly enhanced, the flow capacity of the pipeline was improved, and the risk of burst was eliminated.
This NORDITUBE IH-LINER project is representing the international leading achievements of 5ELEM and NordiTube in scientific and technological innovation.
Cooperation TDM pipeline solutions & NORDITUBE
In the lead-up to the No-Dig Down Under 2022, TDM Pipeline Solutions, AUS, and NORDITUBE entered in a partnership to expand the product portfolio for NORDITUBE’s technologies in Australasia. The local TDM representations and services will be a perfect complement to the global NORDITUBE partner network.
As a first step, TDM and NORDITUBE will concentrate on entering the AUS/NZ market with liner products for gravity pipes and drinking water. For the future, TDM and NORDITUBE are ready to support gas pipe upgrade projects and the mining industry as well.
TDM Pipeline Solutions is a division of TDM Group Australia along with other entities / divisions including TSE, with operations in Melbourne, Sydney and Perth. TDM Pipeline Solutions specializes in commercial, industrial and network services working most prominently with civil infrastructure, water utilities and local government markets.
Triple certified to ISO 45001 (Safety), ISO 9001 (Quality) and ISO 14001 (Environmental) TDM Pipeline Solutions provides services that include CCTV pit and pipeline inspections, drain cleaning, CIPP relining, sectional pipe repairs / patches, top hat and junction relining and robotic cutting.
