BE-02 Open cut method Module: Installation of Pipes

Installation of Pipes

Installation of the Pipes – Lifting Systems

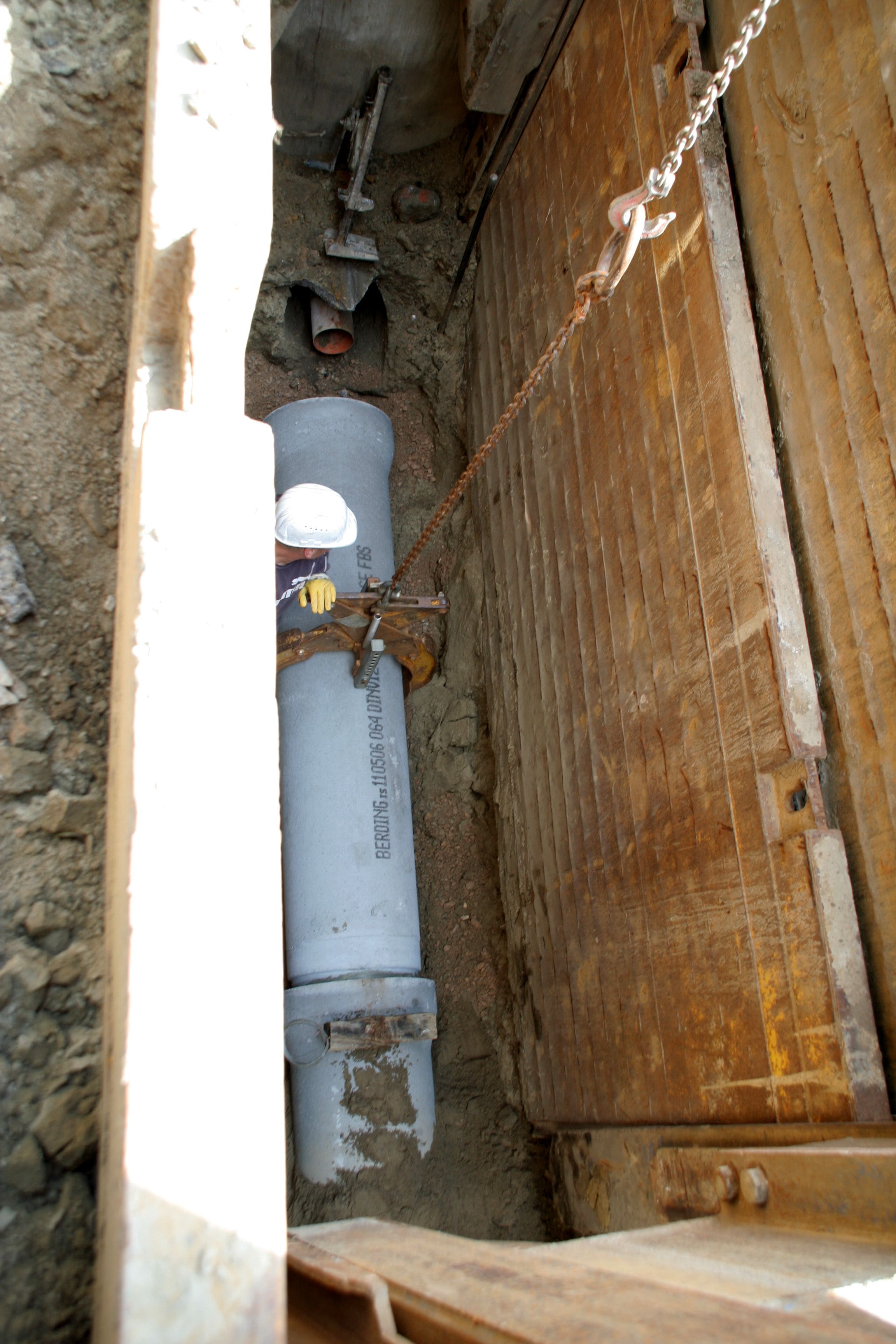

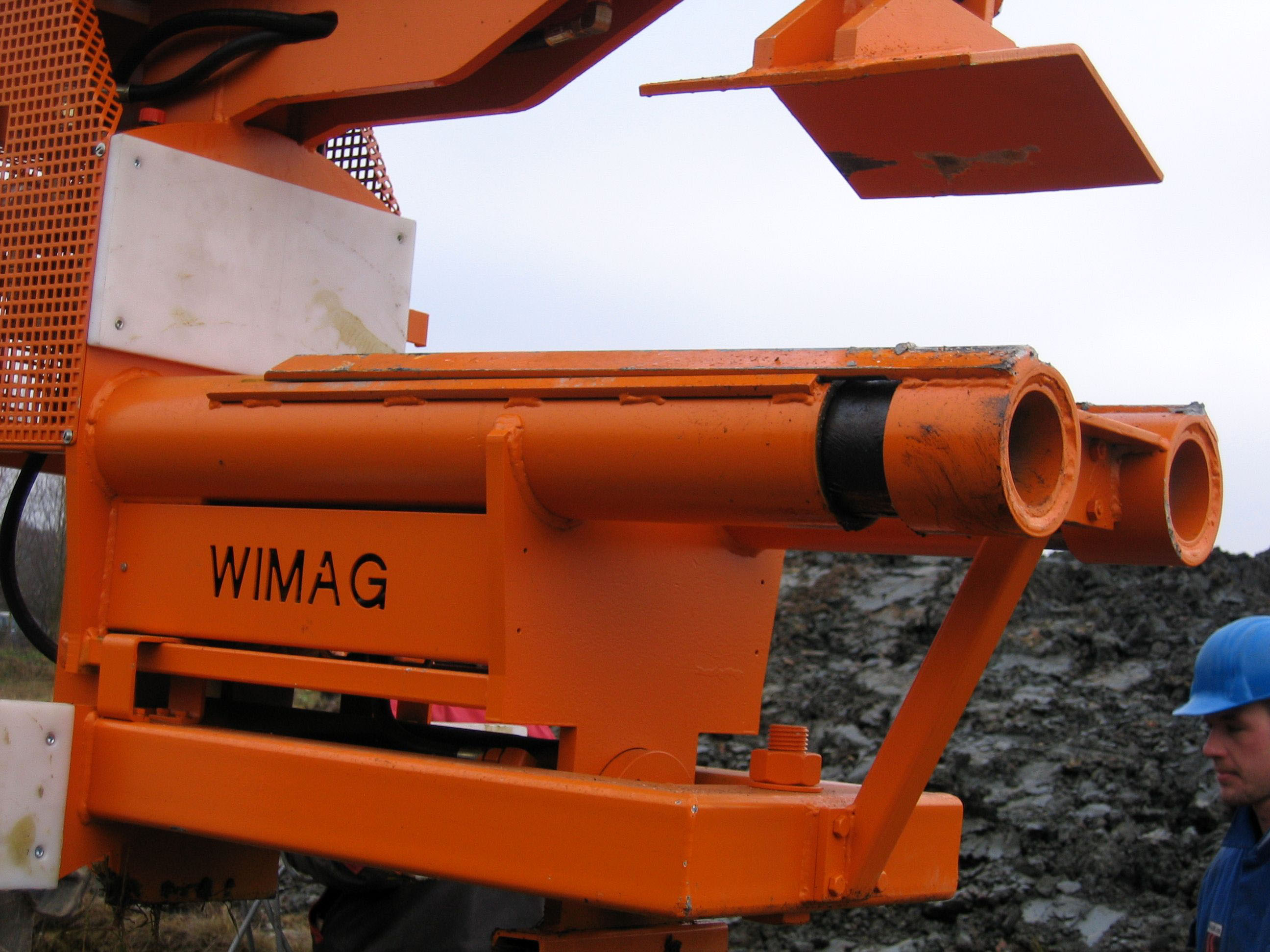

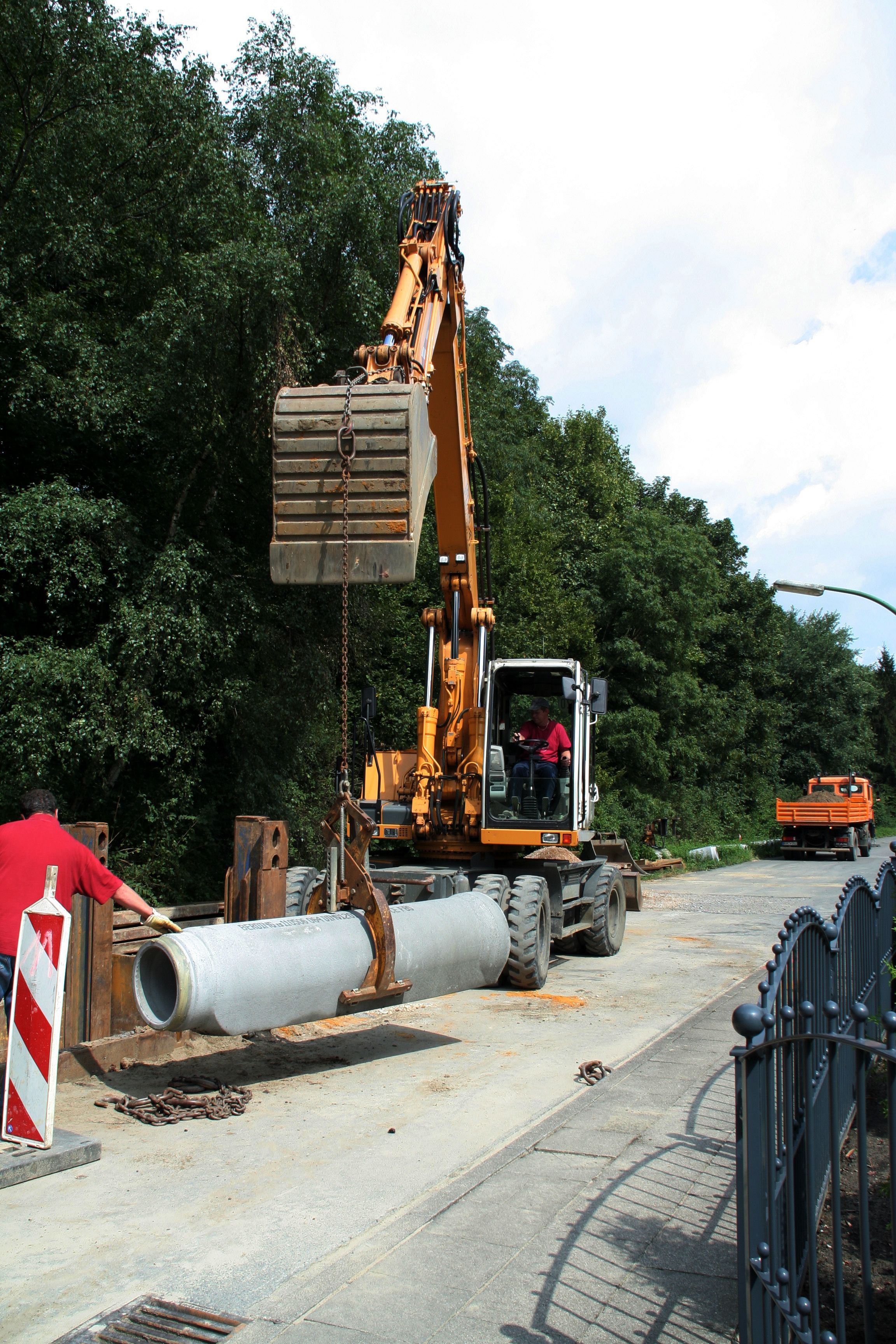

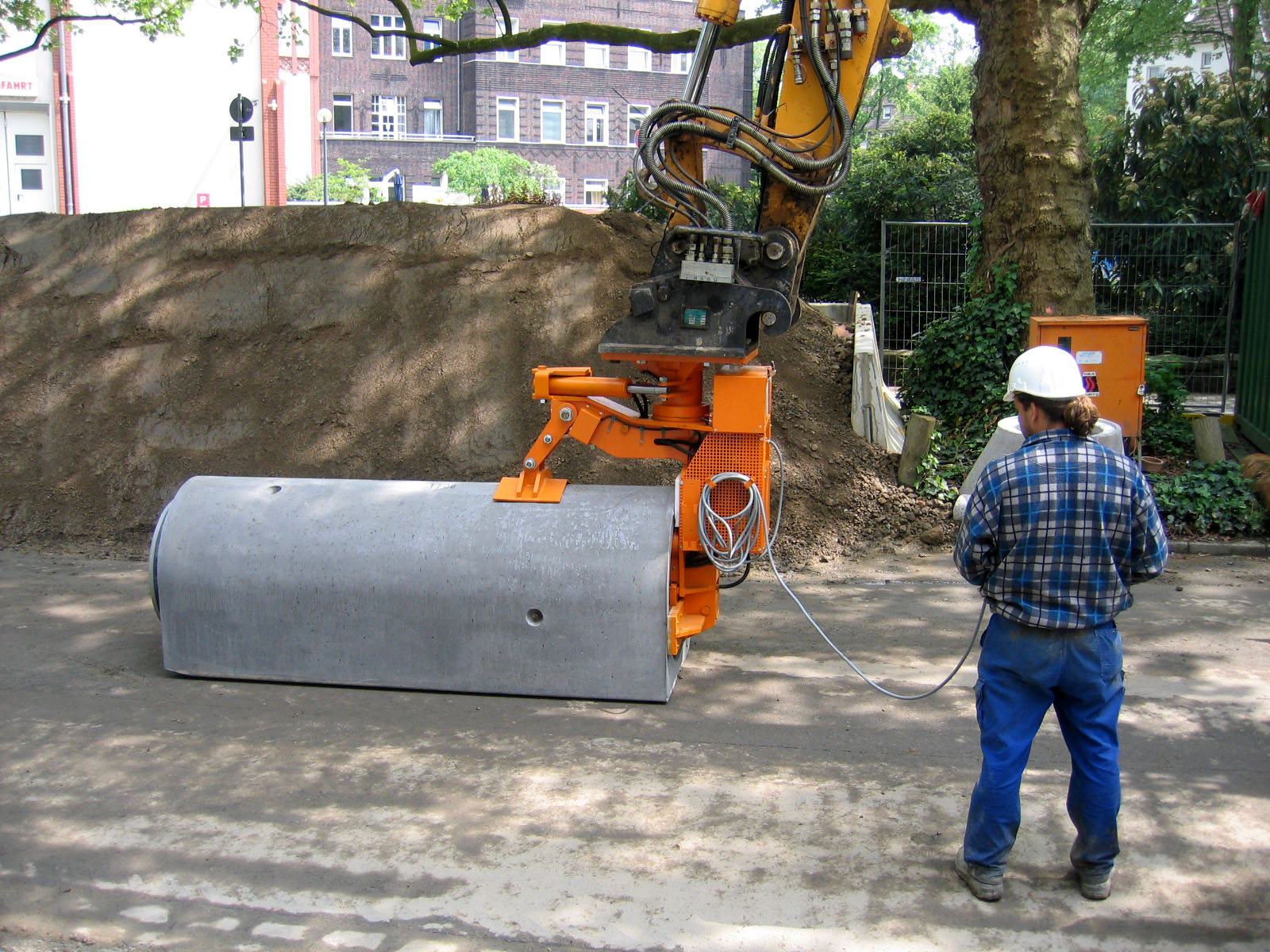

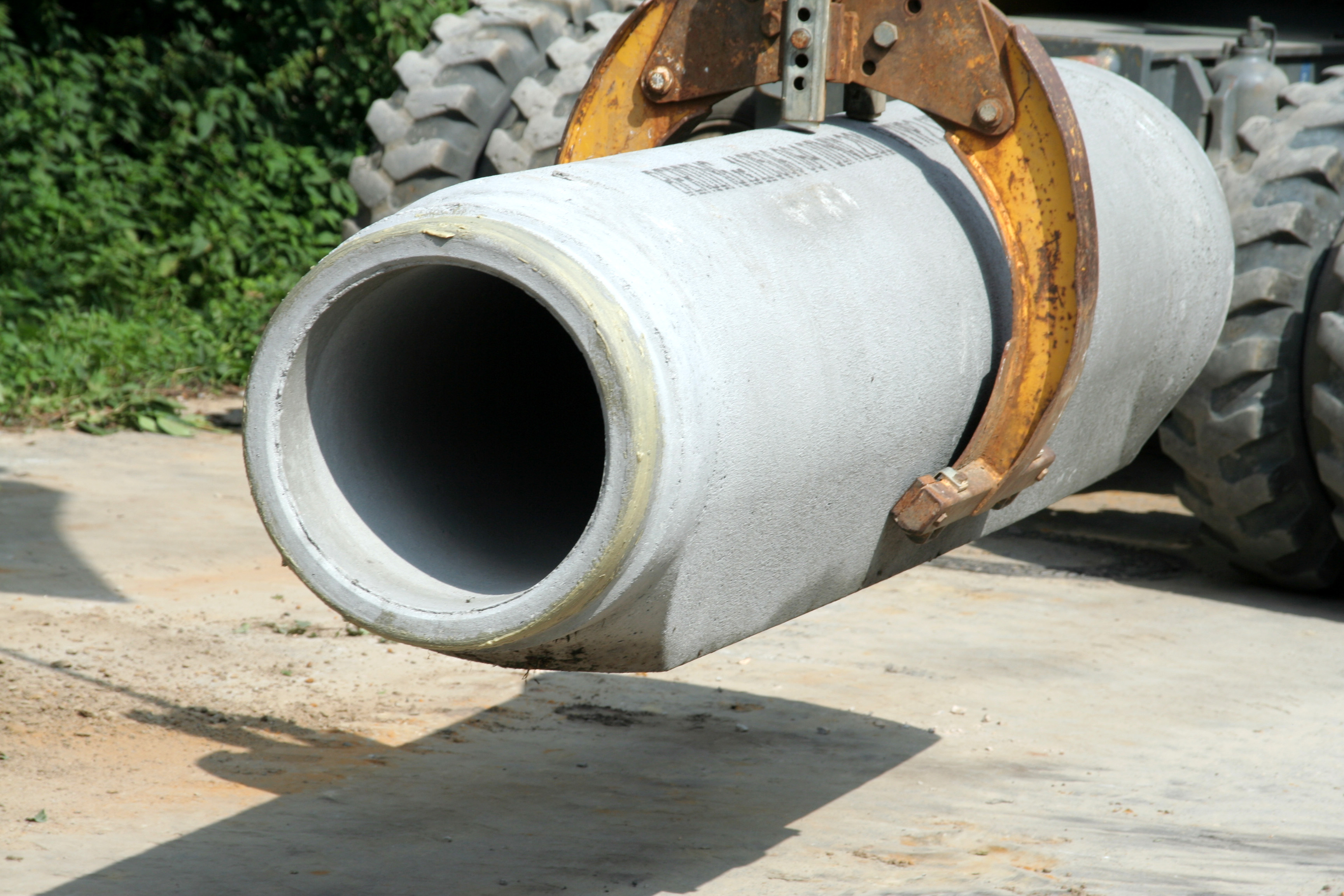

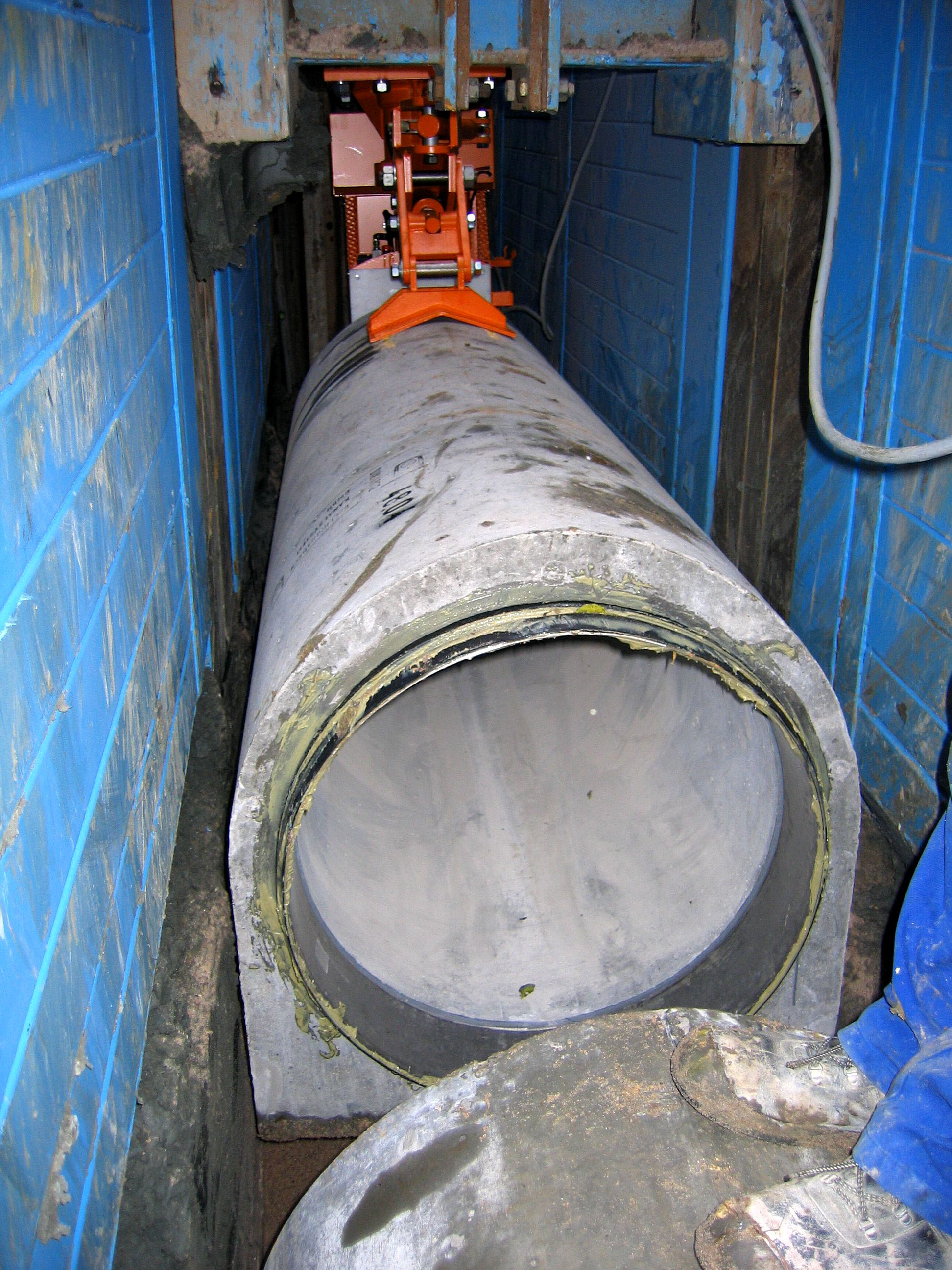

The special loads during lifting and transport of the pipes must be taken into account. In particular, transport via a centric stop (cast-in anchor or centrally positioned pipe gripper) activates bending loads for which the pipes must be dimensioned. For pipes with smaller pipe diameters, it is advisable, if possible, to support the pipe via the outer pipe wall or from the inner pipe wall.

/ 77
