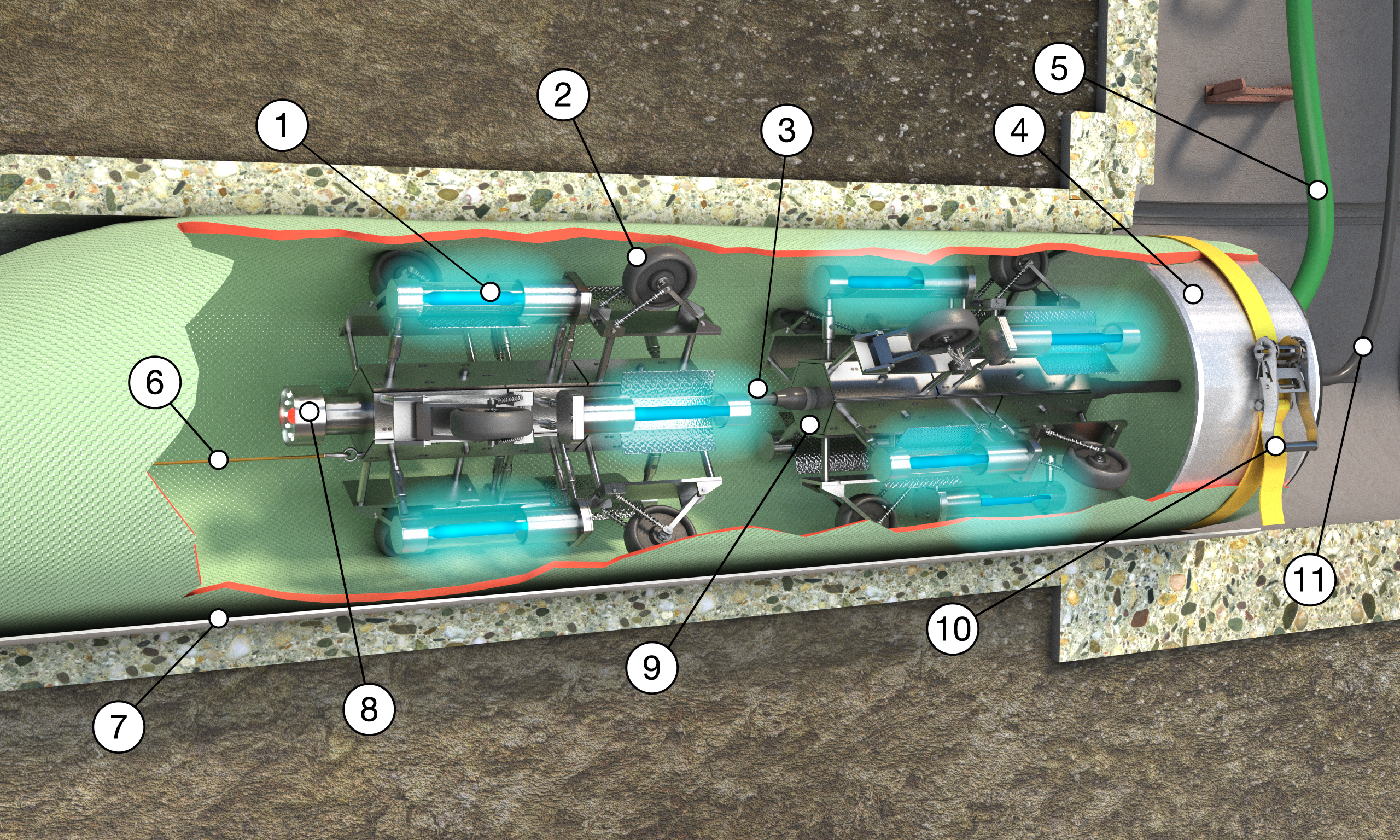

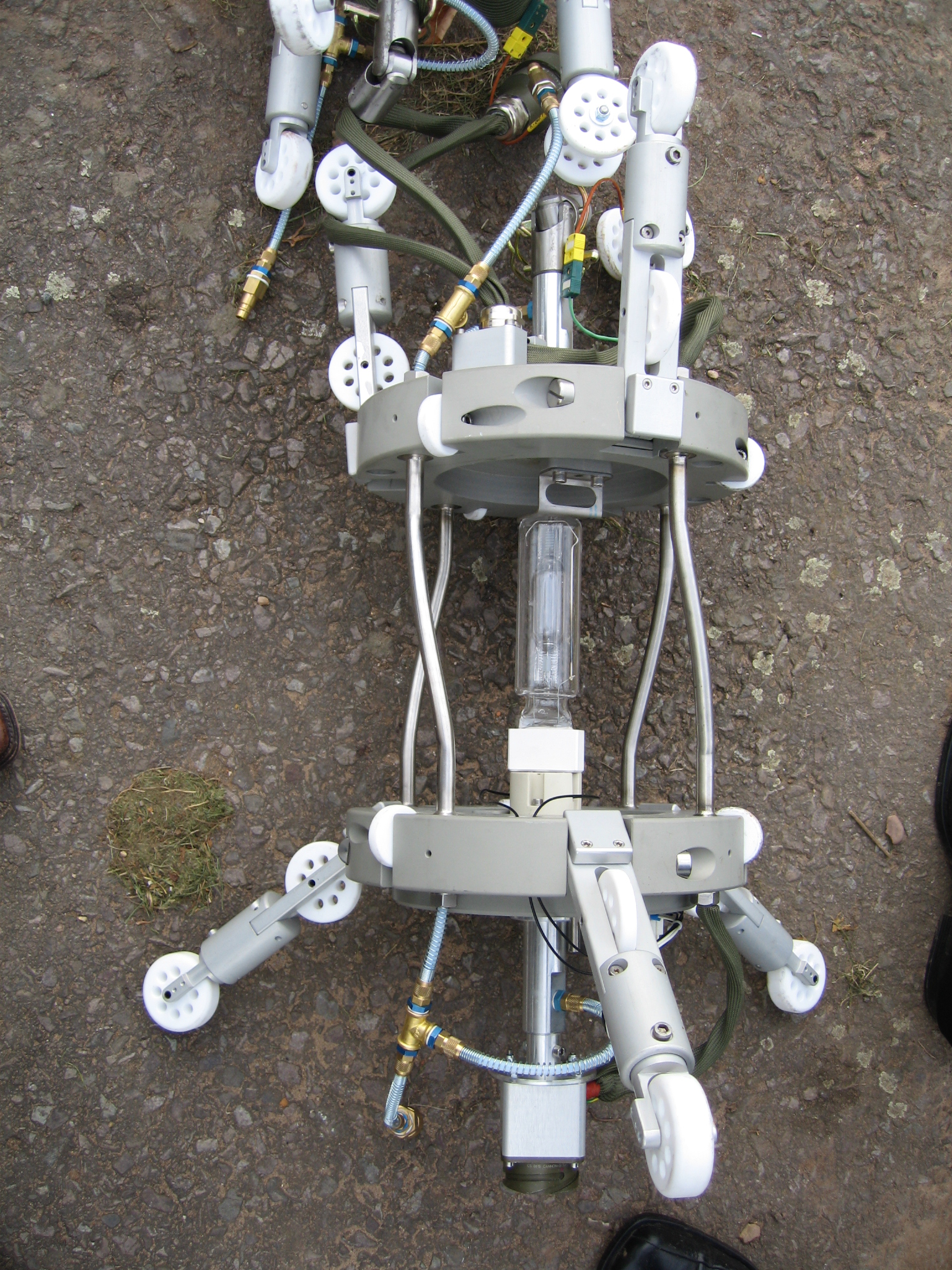

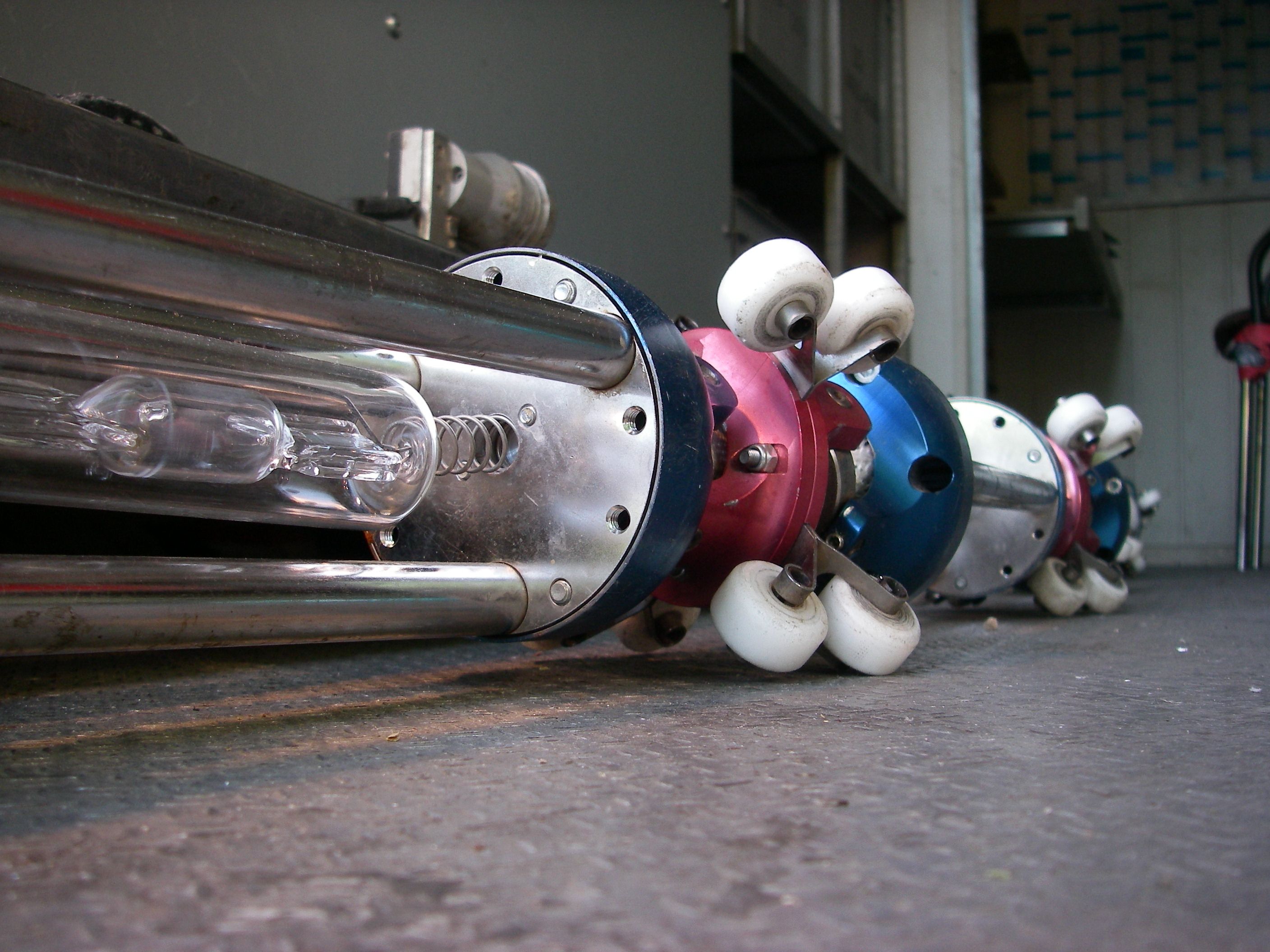

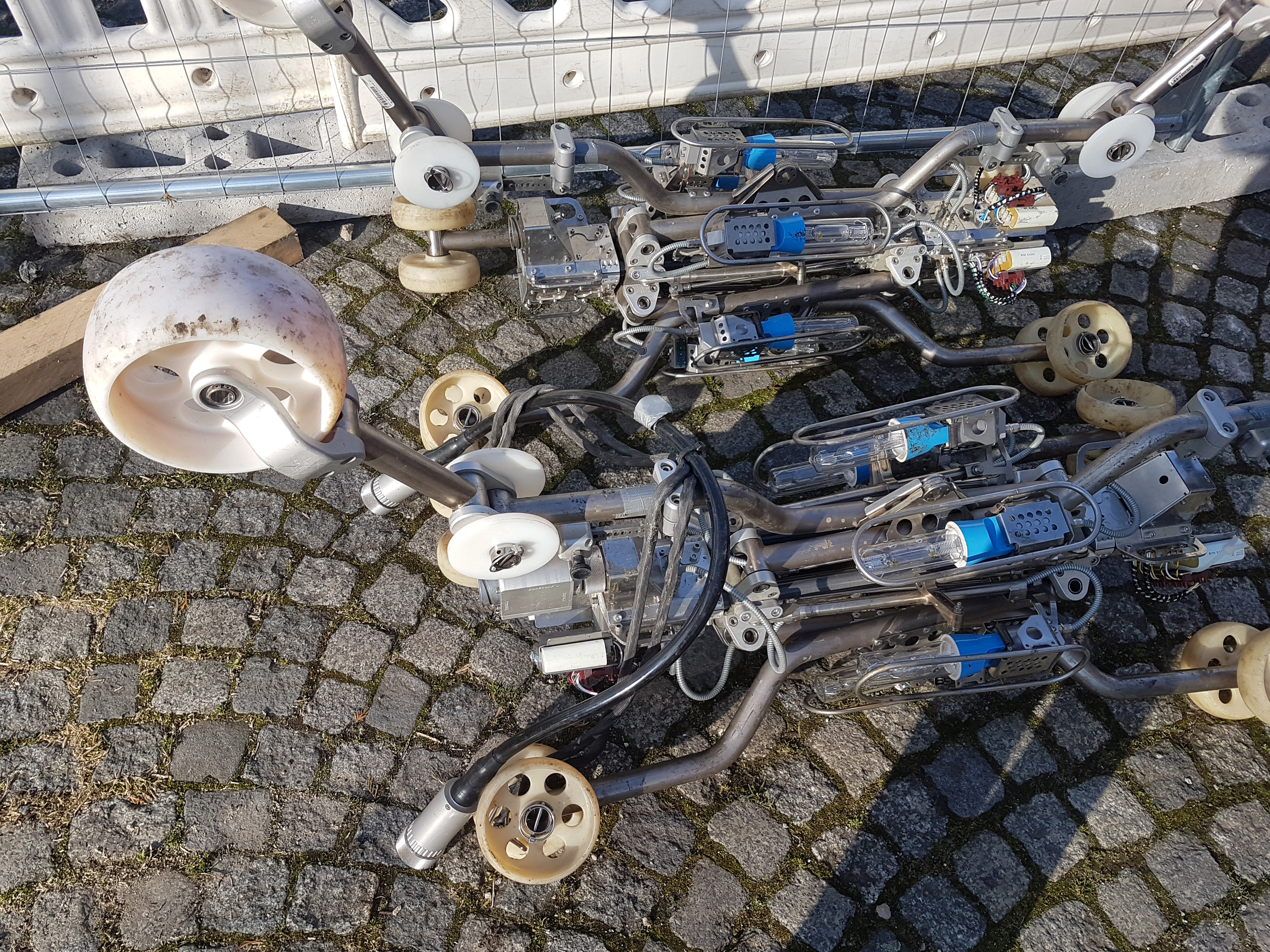

The output of UV spots is in the range from 300 W to 4000 W. The UV spots are combined into a chain of lights (UV light chain) according to the required output.
Before each curing process, the UV spots must be checked visually and cleaned (e.g. removal of fingerprints, dust, etc.). The perfect overall condition and surface cleanliness of the spots are decisive for its function and thus for proper curing of the lining tube.
