Wall Construction of the Lining Tube

Total Wall Thickness

The (static) design thickness of the composite results from its total wall thickness (see picture) by subtracting the thicknesses of the:

  • Internal membrane (foil/coating),
  • External membrane (foil/coating),
  • Pure resin layers,
  • Abrasion layer,
  • Reinforcements as installation aid.

The minimum wall thickness of the composite (ec,min) shall be at least 80 % of the design thickness (plus the thickness of any abrasion layer) or 3 mm, whichever is greater [ENISO 11296-4:2018].

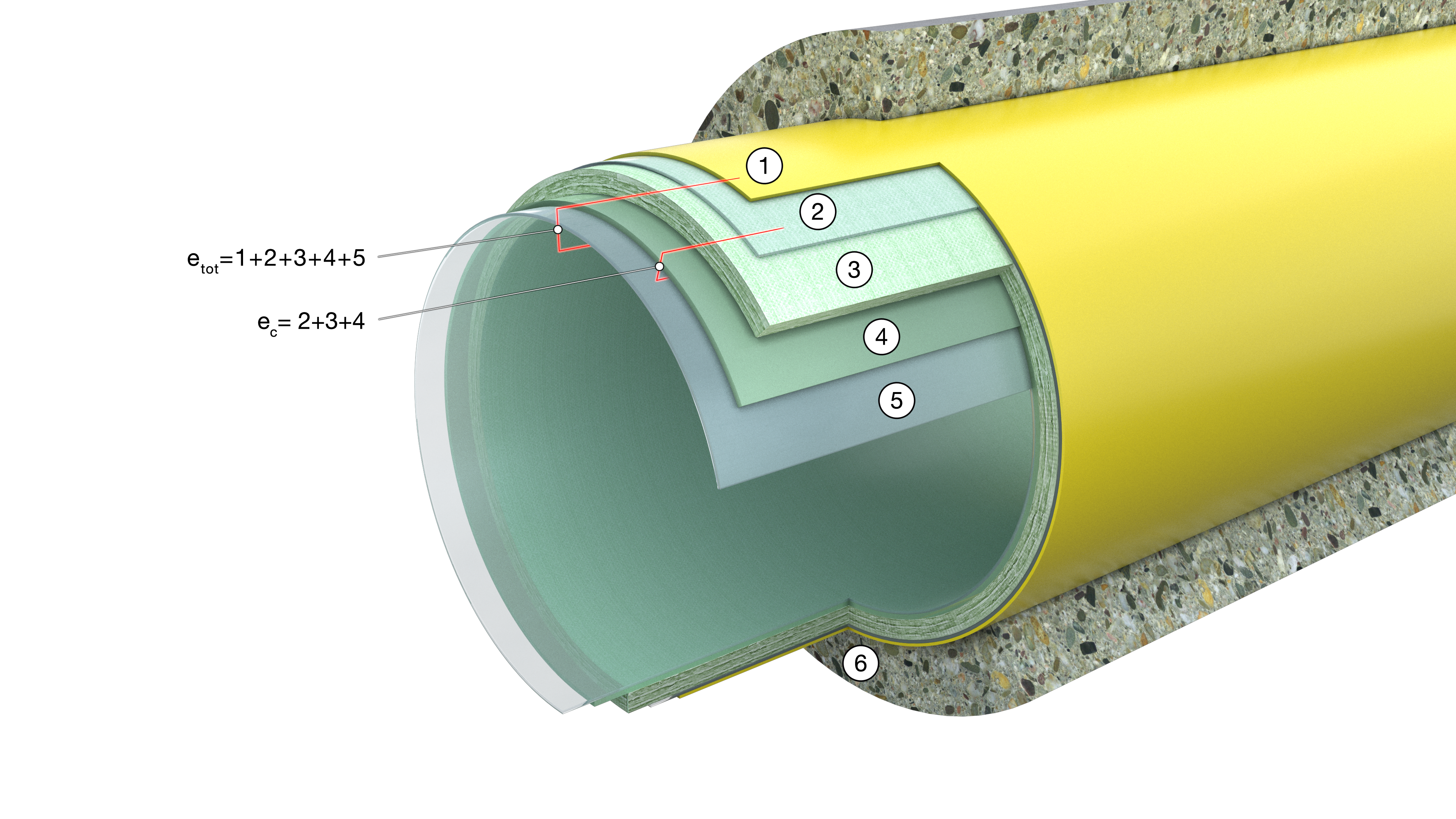

1. External membrane / preliner (e2 = thickness of external membrane)
2. Outer pure resin layer / fleece layer
3. Composite (static load-bearing)
4. Abrasion layer
5. Internal membrane / coating (e1 = thickness of internal membrane)
6. Host pipe
ec = Thickness of the composite (pure resin layer / fleece layer (2) + composite (3) + abrasion layer (4))
etot = Total thickness (1 + 2 +3 + 4 + 5)
