BE-13 Renovation: Lining with Cured-In-Place Pipes - Final Work, Accep...

Milling, Filling, Injection

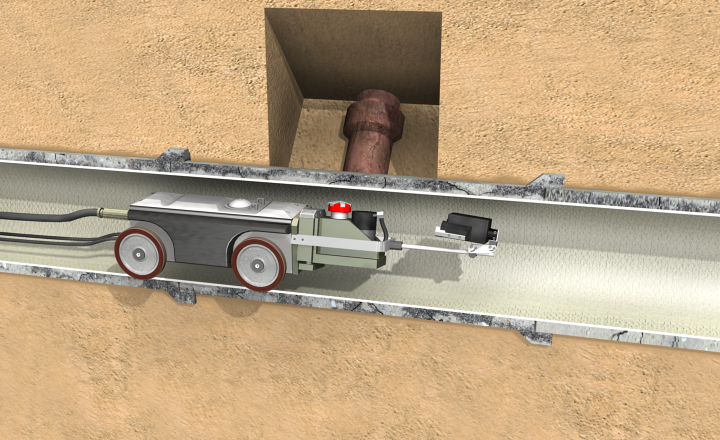

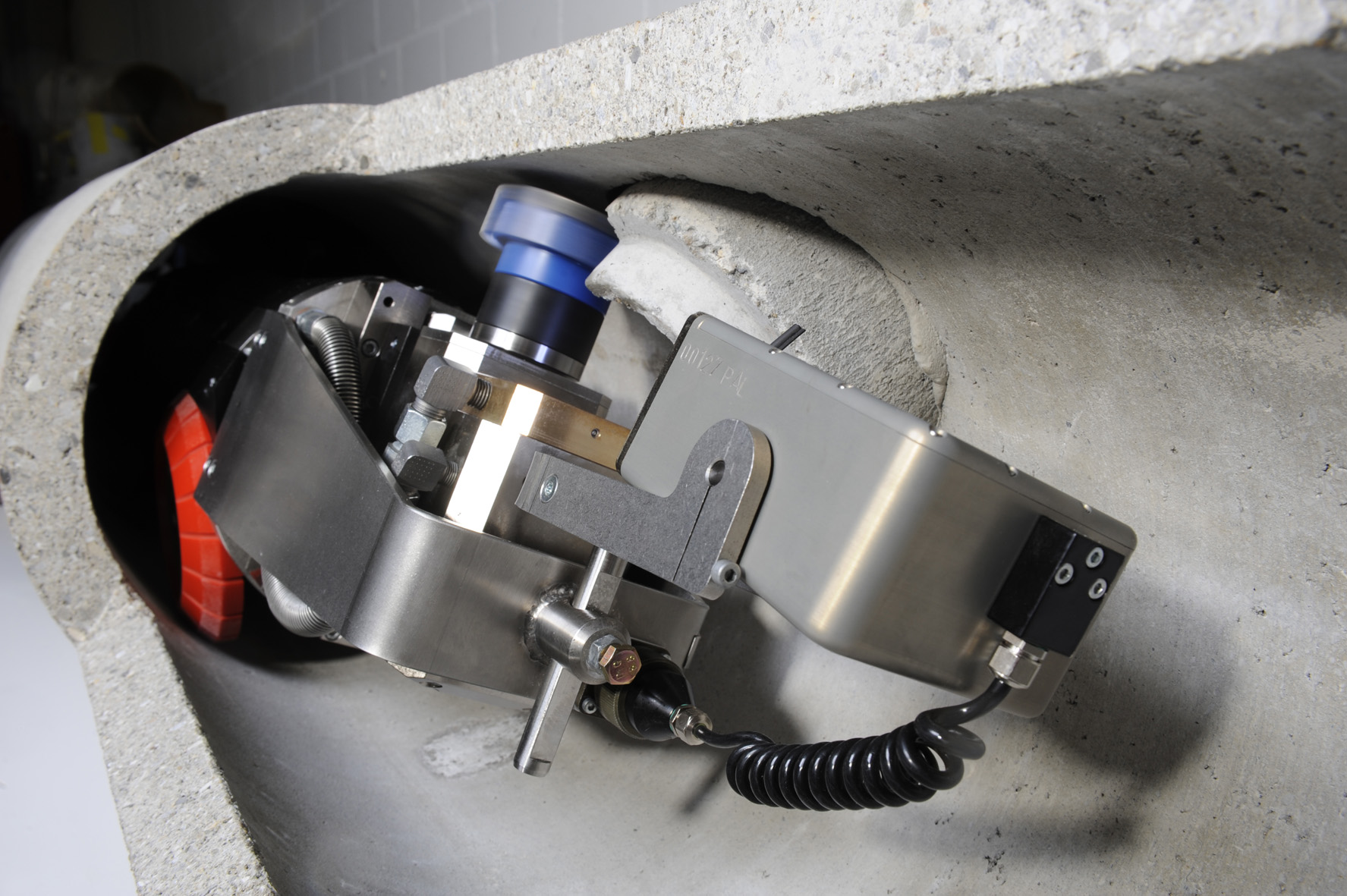

Milling / Cutting Robot

The milling robot is used to prepare the connection, to open connection, to remove obstacles but also to prepare the host pipe surface to achieve an adhesive tensile strength for all repair work where repair materials are applied. In the latter application, for example, loose components are removed, the area to be repaired is milled down to the load-bearing pipe material or an adhesive, dirt and grease-free substrate is produced.

The professional preparation of the host pipe surface by means of milling robot systems includes:

  • Complete milling of the connection opening with adaptation to the nominal diameter and the angle of the connection pipe
  • Removal of the internal membrane of the CIPP liner in the bonding area.

The range of application extends to pipe diameters from DN 150 to DN 1200.
