Milling, Filling, Injection

Filler Robot

A filling robot is used in combination with a milling robot and serves to repair damaged areas and connections by filling the defective areas. The field of application extends to sewers and pipes from DN 150 to DN 800.

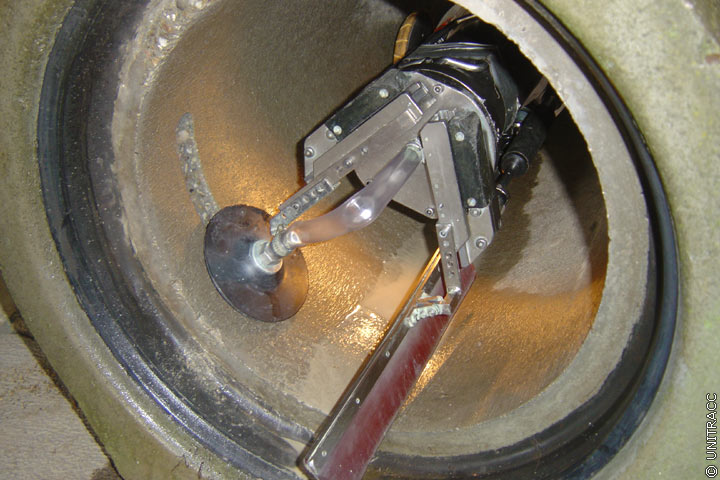

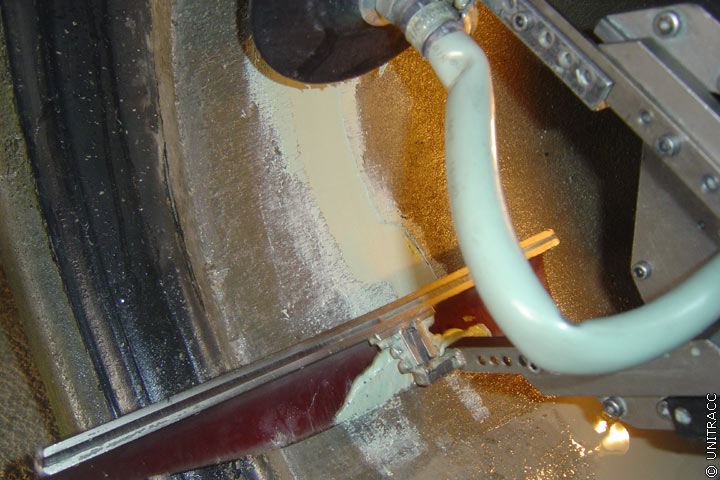

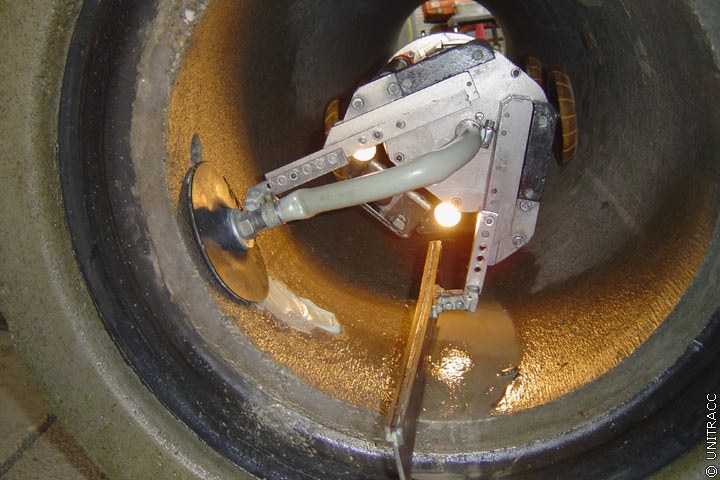

Working steps are shown in the pictures. In the case of ground water infiltration, the infiltration must be sealed in advance by injection.

For all repair measures with robot systems in combination with the application of repair materials (filling or injection work), only epoxy resins are used whose reaction, potting and curing times are adapted to the respective type of repair and which are resistant to the respective wastewater. They have a quick adhesive effect on damp and wet surfaces and can also be applied when using formwork in the presence of ground water.
