Wassara is launching a new way of drilling for instrumentation casing in dams

Jul 18, 2014

Wassara has developed a completely new system for installation of monitoring instrument in dams. A 40 mm tube can now be installed in two hours instead of the two days required by traditional technologies.

There are always safety concerns when drilling in dam structures. With Wassaras water-powered drilling technology, these concerns are minimal. The unique technology, which has been used in numerous dam rehabilitation projects over the years, greatly reduces the pressure applied to the rock formation.

By combining Wassaras DTH technology with a filter tube, installing instruments can be carried out much faster than with traditional methods. A traditional installation of a 40 mm tube usually requires up to two full working days. A Wassara installation of a 40 mm tube takes approximately two hours. This is up to eight times faster than comparable technologies.

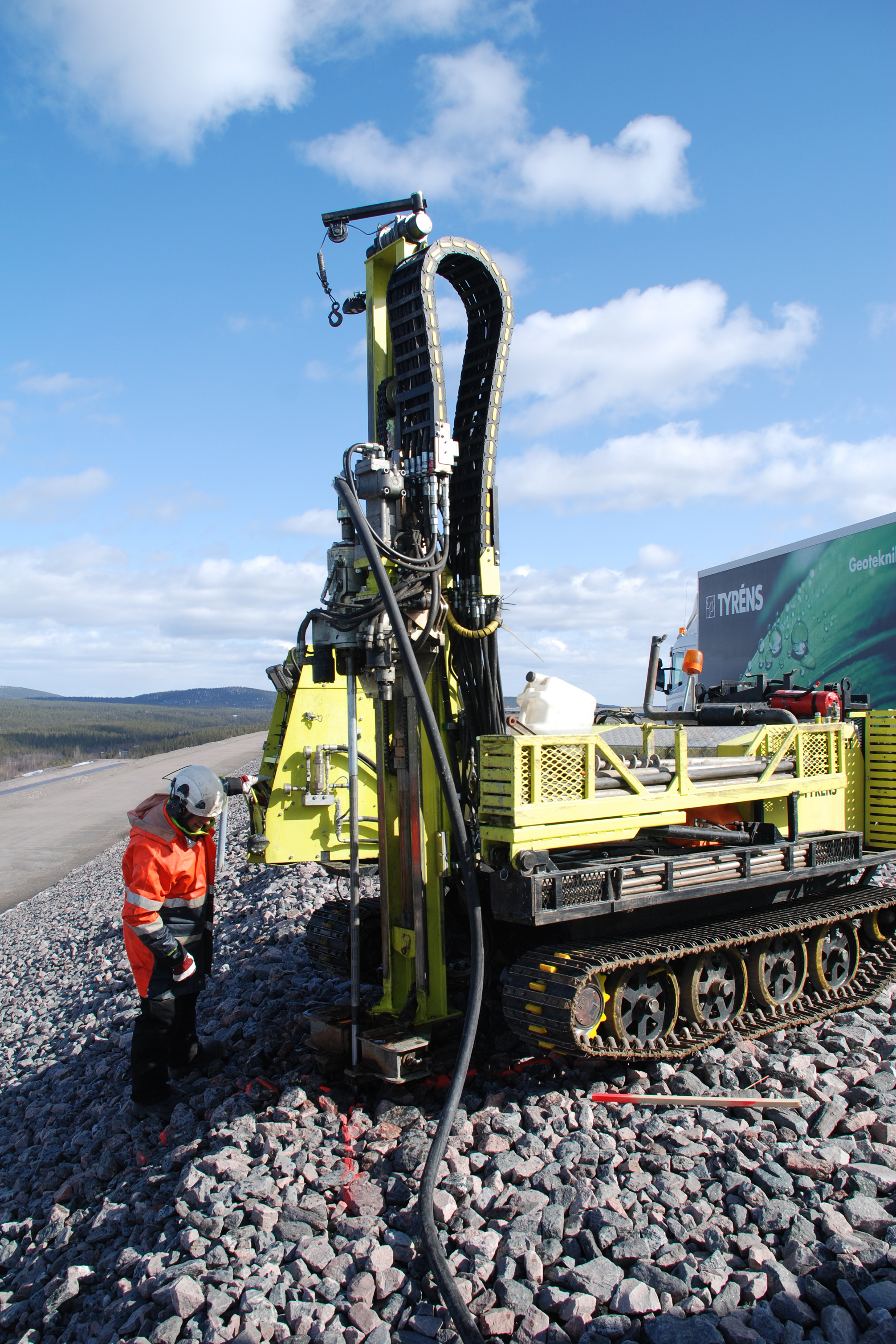

The major difference is the ability to install a filter tube directly, without having to set a 100 mm tube first. The time used to fill the space between the two pipes with filter sand is also eliminated with Wassara and this is a major time savings. Another great advantage is the size of the drill rig, as the installation of a 40 mm tube needs a smaller rig than what a 100 mm tube requires.

The system comprises a Wassara hammer with 43 ​​mm bit, filter tubes, drill rods (Ø 40mm), inner tube and an extractor tool to retrieve the inner tube after installation. The smallest internal diameter is 26 mm (the filter tube).



Contact

LKAB Wassara AB

SE-141 22 Huddinge

Sweden

Phone:

+46 771 760 100

E-Mail:

info.wassara@lkab.com

Internet:

To website
