Integral ball takes up movements - Flexible house connections
Mar 15, 2006
The quality of our ground water and soil is determined not least by the state of sewers and pipework. High-grade pipes and proper economic construction of the sewers are a basic requirement for a long lasting network of pipelines. Intact sewerage pipes ensure that foul and rainwater is taken away safely and quickly. Modern sewer building is thus an investment for the future.
The D Raintank®, a rainwater soak away system, and the D Rainclean® soak away trough for the treatment of rain water represent other important product ranges. This year Funke has made sensible modifications to important building blocks of the various systems. Among the highlights are the new HS®-VARIO coupler, which is revolutionising the field of connections, and the reworked CONNEX ® junction with adjustable socket with which the house connections and side feeds can be quickly, simply and flexibly linked to the collection drain.
The use of plastic pipes when relaying sewers belongs to the future. The flexible pipe systems can react dynamically to loadings (e.g. soil loading). In contrast to rigid materials this prevents cracks and fractures. There are considerable safety reserves in the flexibility and deformability of plastic pipes.
In addition to this - as tests had shown - they are long lived and lastingly leak proof. Plastic is characterised by its lightness, flexibility and favourable energy balance during its manufacture. Plastics, chosen correctly and with the right fittings, can be optimised for the specific purpose of use and, unlike conventional materials, can offer a high chemical resistance and a permanently smooth surface.
Even in high pressure flushing trials the material has provided proof of its toughness many times. Plastic pipes are characterised by their low weight. They are thus easy to handle even in long lengths. The pipe lengths can be individually matched to the installation situation on site. Plastic pipe systems have at their disposal all the necessary connection and junction modules in the same material. This versatility, their suitability for the industrial manufacturing process, combined with ease of handling and highly economical installation and operation, have led to plastic pipes and moulded components capturing an ever-larger market share.
New developments such as the CONNEX ® junction with adjustable socket and the HS-VARIO® coupler contribute a great deal to the success. The CONNEX® junction has been updated by Funke and once again a decisive function considerably improved. This component, developed in the "Hamm think tank" has already proven excellent in practice.

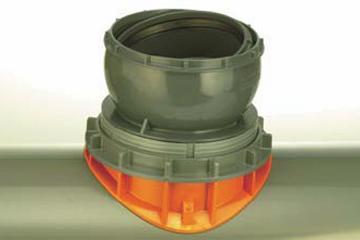

With the CONNEX® junction, house connection pipes or side feeds can be quickly, simply and economically connected to the collector drain - when relaying or for later installation. As of now this component has an integral ball joint. This allows the connected pipes to swivel through a range of 0° to 11°. The CONNEX® junction for this complies with the requirements of DWA A 139, according to which "connection pipes must be manufactured and connected so that they can take up movements". The considerably increased flexibility and articulation makes a decisive contribution to newly-laid house connection pipes having the desired quality of finish and a long life.
The use of the CONNEX® junction considerably simplifies conventional working methods. Exposing a metre wide section of the main sewer for the subsequent connections of pipes is no longer necessary. The pipe bed remains untouched during the assembly work. The fitting of moulded components and push-on sleeves after the otherwise normal twin cut through the relevant pipeline is also done away with. The precise, quick fitting saves time and money.

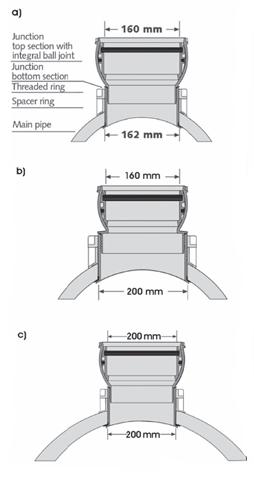

The new CONNEX® junction with adjustable socket comes in three versions: 200 mm bore with 200 mm top connection section for the DN/OD 250 to 1500 nominal diameter range, 200 mm bore with 160 mm top connection section for the DN/OD 400 to 1500 nominal diameter range and the smaller version 162 mm bore with 160 mm top connection section for the DN/OD 200 to 315 nominal diameter range (see Table 1).

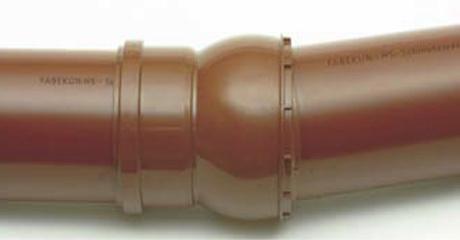

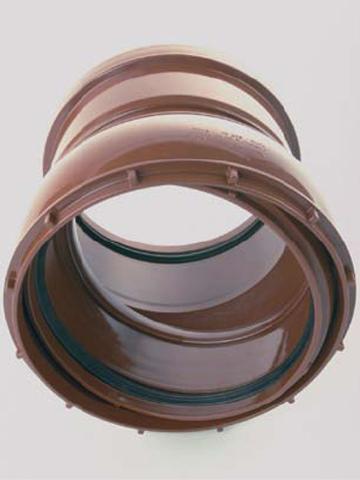

This is a real quantum leap when joining pipes: With the HS®-VARIO coupler, Funke makes house connections flexible and articulated. The new moulded component, acclaimed at the IFAT premiere, is a logical addition to the familiar HS® double coupler. Its special feature: the VARIO coupler has an integral ball.
This allows the connected pipe joints to swivel through a range of 0° to 11°. The new moulded component comes in the nominal sizes DN/OD 160 mm and DN/OD 200 mm, with a choice of female or male end. When relaying house connection pipes experience tells us that constraints could occur in the coupler area. The same applies when laying using elbows, when the specified angles cannot be adhered to.
The possible consequences are leaks and the intrusion of roots. With the development of the new HS®-VARIO coupler this is a thing of the past. The ball integrated into the moulded component is free to move in a range between 0° and 11°. This provides an optimal permanent ability to move for the whole HS® pipe system. It also considerably eases laying on site, as the Civil Engineers can adjust much more easily to the conditions on site with a flexible pipe system.
Nominal diameter Connection DN/OD | Ø Bore mm | Main pipe nominal diameters DN |
---|---|---|
160 | 162 ± 1mm | 200-315 |
160 | 200 ± 1mm | 400-1500 |
200 | 200 ± 1mm | 250-1500 |
Source: Funke Kunststoffe GmbH
The VARIO coupler is particularly suited for use in renovation work. The new moulded component, like all other components in the HS® pipe system, has reinforced walls and is available in the colours blue (rainwater) and brown (foul water). The outside diameter/wall thickness ratio is SDR 34.
